Black Pass Through Post 57-804
$19.95
- SKU:
- QRP57-804
- UPC:
- 810165041974
- Weight:
- 0.20 LBS
- Width:
- 3.50 (in)
- Height:
- 1.00 (in)
- Depth:
- 4.55 (in)
- Shipping:
- Calculated at Checkout
Related Products

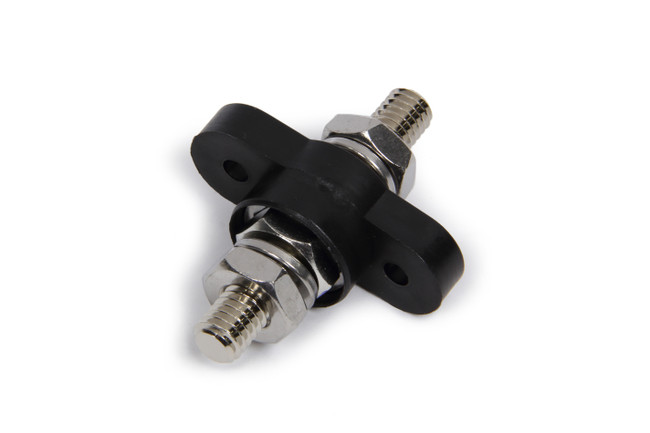

Passing a 12 volt feed through a firewall is where a lot of good wiring jobs turn into a chafed cable and a short. A proper panel terminal makes it a sealed, mechanical connection on both sides of the panel. A black pass-through post with nickel-plated 3/8 Inch studs, rated to a maximum of 250 amps.
Features and Benefits:
- Panel Terminal - Black, 3/8 Inch Studs, Pass-Through Post, 250 Amp, each 57-804
- Black Pass-Through Post.
- Neatly run electrical wires through firewalls or other metal surfaces.
- Nickel-plated 3/8 studs.
- Rated for a maximum of 250 amps.
Details:
- Color: Black
- Location: Firewall
- Sold As: Each
Specifications
| Part Number | QRP57-804 |
|---|---|
| Shipping Weight | 0.2 lb |
| Shipping Dimensions (L x W x H) | 4.55 x 3.5 x 1 in |
| Product Type | Electrical Junction Blocks |
| Amp Rating | 250 amp |
| Junction Box Circuit A Quantity | 1 |
| Terminal 1 Size | 3/8-16 in |
| Style | Stud |
| Terminal 1 Quantity | 2 |
| Insulated | Yes |
| Junction Box A Mounting Style | Bolt On |
| Junction Box Mounting Hole A Quantity | 2 |
| Material | Plastic |
| Color | Black |
| Finish | Natural |
| Quantity | Each |
| Country of Origin | USA |
QuickCar Racing Products Product Information Sheet
