Extreme 3-1 Gauge Panel OP/WT/FP/Tach 61-7042

(No reviews yet) Write a Review
SKU:
QRP61-7042
UPC:
819616014253
Weight:
4.11 LBS
Shipping:
Calculated at Checkout
  • 61-7042 Extreme 3-1 w/ Tach Quickcar Racing Products
$439.95

Description

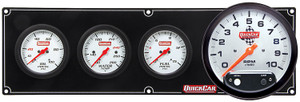

61-7042 Extreme 3-1 w/ Gauge Panel OP/WT/FP/Tach

QuickCar’s Extreme Gauges are set apart from other mechanical gauges by the internal warning light feature. As pressures drop or temperatures rise, internal LED lights illuminate causing the entire face of the gauge to change color. This panel has Oil Pressure, Water Temperature, Fuel Pressure Extreme mechanical gauges, and the Extreme Digital Tach mounted in a black plate measuring 13-5/8” wide and 4-1/2” tall. The Extreme Tach has a display range of 0-18,000 RPM’s with a settable shift light. Cylinder settings and shift light display can be changed by simply touching the “select” and “scroll” lenses on the bottom of the tach. Panel comes complete with all sending units and wiring to complete the installation. The Oil and Fuel Pressure gauges have standard 1/8”-NPT fittings for plumbing lines (sold separately) while Water Temp. comes with a 1/2”-NPT adapter to mount in almost any high-performance engine. Internal warning lights activate when Oil Pressure drops below 20 PSI, Water Temp. rises above 235°F, and Fuel Pressure drops below 4 PSI.

Item Specifics
Alternate Description
EXTREME 3-1 w/ TACH OP/WT/FP
Part Number
QRP61-7042
Vendor Part Number
61-7042
UPC Code
819616014253
Package Weight
4.11 lbs
1.86 kg
Package Length
16.0 in
40.69 cm
Package Width
10.5 in
26.67 cm
Package Height
6.5 in
16.51 cm

warning.png WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer, birth defects, and other reproductive harm. For more information, go to www.p65warnings.ca.gov.

Instruction Sheet

pdf Instruction Sheet

Extreme Tach Instruction Sheet

pdf Extreme Tach Instruction Sheet
