6 Switches & 1 Button w/ Lights & Circuit Breakers 50-869
- 2.12 LBS
- Calculated at Checkout
50-869 6 Switches & 1 Button w/ Lights & Circuit Breakers

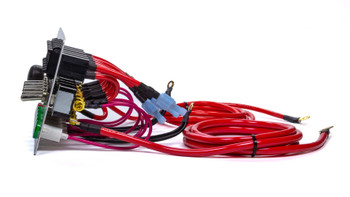

This QuickCar Switch Panel comes with 1 ignition switch, 1 starter button, and 5 accessory switches installed in a black plate. The single pole toggle switches (6 total) are all prewired to corresponding circuit breakers that are directly above each switch and lights below each switch. The panel dimensions are 6-7/8" wide and 5" tall. Panel comes assembled and pre-wired with mounting holes already punched out to make installation simple. Main power cable and starter wire are professionally crimped, soldered, and heat shrunk for superior quality. Simply route wires from your ignition and accessories and crimp them into the attached spade connectors on each breaker to complete install.
Different Indicator Light colors and Circuit Breaker ratings are available by calling 1-800-997-7333.
IGNITION PANEL w/ START BUT. 5 ACC. CIRCUT BRKR
Vendor Part Number
